Name: SS304 Screw Press Sludge Dewatering Machine | 1-500 m³/H Capacity for Industrial Sludge Treatment
Brand: Jiangsu Longdai Environmental Protection Co., Ltd.
SKU: LD-134
Price: 3,100.00 USD
Availability: InStock

Casa Produtos Máquina da imprensa da lama

SS304 Screw Press Sludge Dewatering Machine | 1-500 m³/H Capacity for Industrial Sludge Treatment

Detalhes do produto:

Lugar de origem:	Jiangsu China
Marca:	longdai
Certificação:	ISO9001
Número do modelo:	LD-134

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Preço:	Negotiatable
Detalhes da embalagem:	Polywood da exportação
Tempo de entrega:	25 dias
Termos de pagamento:	L/c, t/t
Habilidade da fonte:	2500 conjuntos por ano

Contato

Descrição de produto detalhada

Nome:	Imprensa de parafuso de secagem da lama	Material:	SS304
Tamanho:	Personalizado	Capacidade:	1-500m3/h
Recurso:	Pressão	Aplicação:	fábrica
outro nome:	Desidratador Volute da lama do parafuso	Vantagem:	Baixo custo
Palavras -chave:	Tratamento espiral empilhado da lama	Tipo:	Parafuso

Bestselling SS304 Stainless Steel Screw Press Sludge Dewatering Machine for Efficient Sludge Treatment

Product Overview
This sludge dewatering equipment is specifically designed to reduce the moisture content of sludge to 75%–85%. The integrated stacked screw press system combines a fully automatic control cabinet, flocculation conditioning tank, sludge thickening and dewatering unit, and filtrate collection tank. It enables highly efficient flocculation and continuous sludge thickening and mechanical dewatering under fully automated operation. The treated filtrate can be safely discharged or returned for further processing.

Key Advantages

Compact & Space-Saving Design
a. The system integrates the electrical control cabinet, metering tank, flocculation mixing tank, and dewatering unit into one compact structure.
b. It occupies minimal space, is easy to maintain, and is lightweight for convenient operation.
Anti-Clogging & Self-Cleaning
a. Equipped with a self-cleaning function, it eliminates the need for manual filter cleaning, reduces water consumption for flushing, and minimizes internal circulatory load.
b. Highly effective in dewatering oily sludge.
Low-Speed Energy-Efficient Operation
a. The spiral shaft rotates at only 2–3 RPM, ensuring low power consumption.
b. It operates with minimal noise, vibration, and mechanical failure, ensuring safety and reliability.
User-Friendly Automation
a. The electrical control cabinet enables seamless linkage with air flotation machines, sludge pumps, and dosing pumps for 24/7 continuous operation.
b. Requires short maintenance periods with simple procedures.
Durable & Long-Lasting
a. Constructed with high-quality stainless steel, ensuring maximum service life.
b. Only the spiral shaft and travel rings require occasional replacement, reducing long-term operational costs.

Parameters

Specification///model			DL-101	DL-102	DL-201	DL-202	DL-301	DL-302	DL-303
Processing capacity(m³/h)	Mud concentration(S.S.0.2-0.5%)		0.6-1.5	1.2-3.0	1.8-4.5	3.6-9.0	6.0-15	12-30	18-45
	Mud concentration(S.S.0.5-2.0%)		0.25-0.6	0.5-1.2	0.75-1.8	1.5-3.6	2.5-6.0	5.0-12	7.5-18
	Mud concentration(S.S.2.0-5.0%)		0.1-0.25	0.2-0.5	0.3-0.75	0.6-1.5	1.0-2.5	2.0-5.0	3.0-7.5
Absolute dry quantity(kg/h)	Mud concentration(S.S.0.2-0.5%)		0-3.0	2.4-6.0	3.6-9.0	7.2-18	12-30	24-60	36-90
	Mud concentration(S.S.0.5-2.0%)		0-5.0	5.0-10	9.0-15	18-30	30-50	50-100	90-150
	Mud concentration(S.S.2.0-5.0%)		0-5.0	5.0-10	9.0-15	18-30	30-50	50-100	90-150
Mud cake moisture content(%)			75-85	75-85	75-85	75-85	75-85	75-85	75-85
Spiral diameter (mm) * quantity (pieces)			100*1	100*2	200*1	200*2	300*1	300*2	300*3
Use power (KW)			0.2	0.3	0.6	0.8	0.8	1.2	1.95
Equipment dimensions (mm)		L	1816	1816	2500	2500	3255	3455	3605
		W	756	910	850	935	985	1295	1690
		H	1040	1040	1270	1270	1600	1600	1600
Reference weight (kg)			190	275	360	470	820	1350	1820

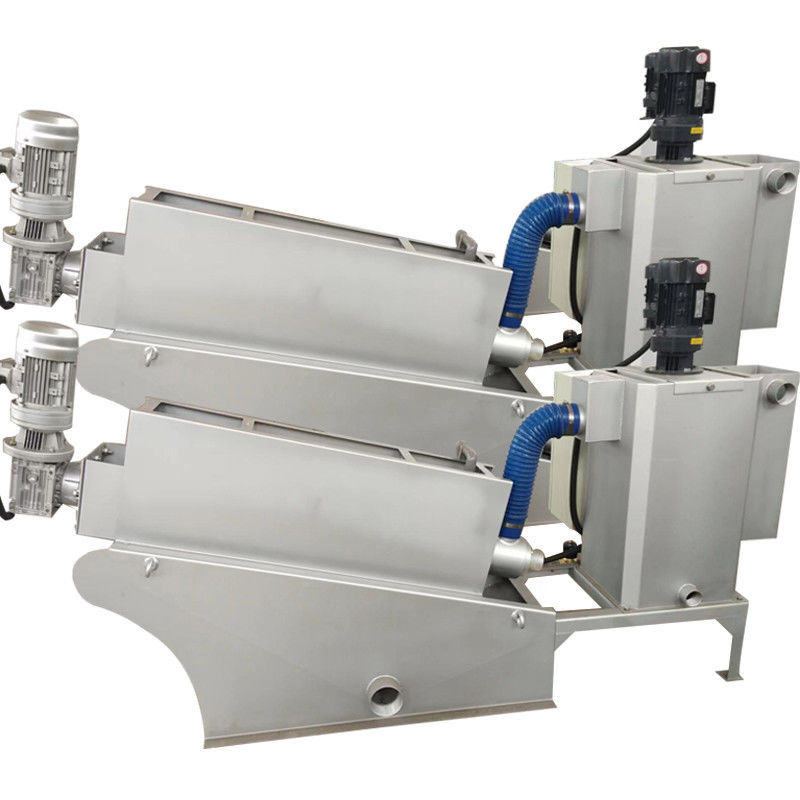

Real picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers. Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.
