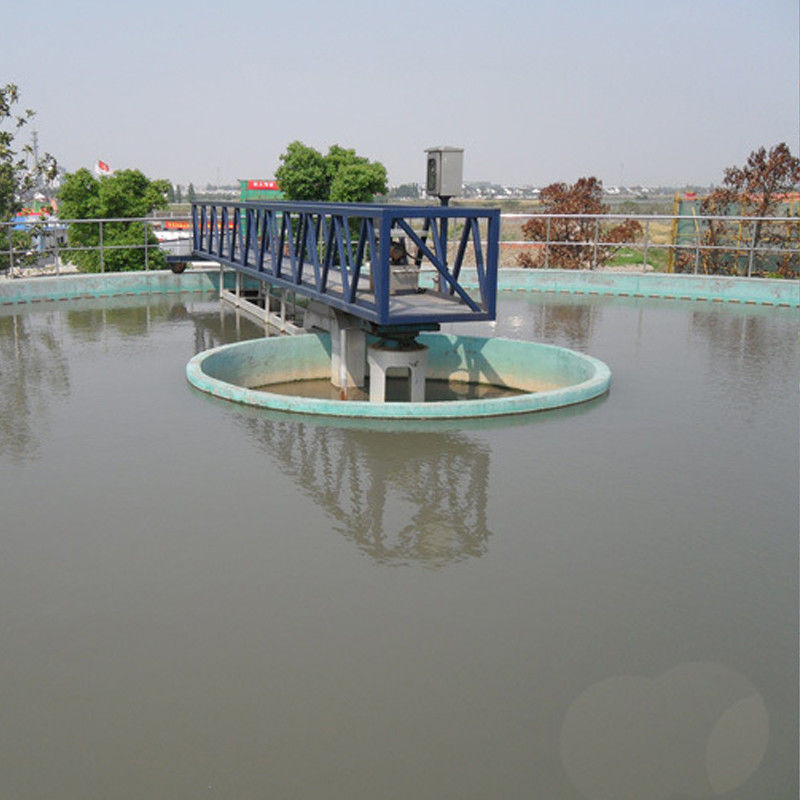

China-Made High-Efficiency Full-Bridge Sludge Scraper System with Perimeter Drive for Wastewater Treatment
To Our Valued Customers:
We offer fully customizable sludge removal solutions tailored to your specific project requirements. Share your technical parameters, flow charts, or other demands with us—we guarantee a response within 12 hours via email or online chat.
The ZCX series central-drive single/double pipe suction machine is designed for large and medium-sized sedimentation tanks with peripheral water intake/discharge and central sludge discharge. It is widely used in urban wastewater treatment plants for efficient sludge extraction in secondary sedimentation tanks.
| Model | Tank Diameter Φ (m) | Motor Power (kW) | Peripheral Speed (m/min) | Wheel Pressure P1 (kN) | Central Vertical Load P2 (kN) |
|---|---|---|---|---|---|
| ZBGX-16 | 16 | 0.37 | 1.8–2.2 | 9.0 | 17 |
| ZBGX-20 | 20 | 0.37 | 1.8–2.2 | 11.5 | 23 |
| ZBGX-25 | 25 | 0.55 | 1.8–2.2 | 15 | 30 |
| ZBGX-30 | 30 | 0.55 | 1.8–2.2 | 19 | 37 |
| ZBGX-35 | 35 | 0.75 | 1.8–2.2 | 22 | 82 |
| ZBGX-40 | 40 | 0.75 | 1.8–2.2 | 25 | 100 |
| ZBGX-45 | 45 | 0.75 | 1.8–2.2 | 28 | 112 |
| ZBGX-50 | 50 | 0.75 | 1.8–2.2 | 30 | 122 |
| ZBGX-55 | 55 | 0.75 | 1.8–2.2 | 32 | 175 |
Additional Specifications:
Tank Depth: 3.5–4.5 m (customizable)
Side Water Depth: 3.0–4.0 m (customizable)
Installation Dimensions: Customized based on user requirements
Ideal for:
Urban wastewater treatment plants
Secondary sedimentation tanks
Large and medium-sized circular sedimentation tanks with peripheral inflow/outflow and central sludge discharge
The system adopts a central transmission vertical frame design:
Wastewater enters through a peripheral distribution tank and flows uniformly into the sedimentation tank.
A peripheral skirt guides water from the tank bottom toward the center, promoting sludge settling.
The central drive rotates the vertical frame, sludge scraper arms, and suction pipes.
Sludge enters suction ports via hydrostatic pressure and is discharged through a central sludge pipe with a sleeve valve for flow control.
Floating scum is skimmed to the periphery and removed by a scraper mechanism.
Treated effluent flows over a triangular weir into the outlet trough.
Uniform Flow Distribution: Peripheral inlet/outlet troughs with side sections ensure balanced hydraulic loading.
Robust Drive System: Helical and worm gear reducers provide high torque and reliable operation with overload protection.
Adaptable Scraper Design: Single-arm scraper for tanks ≤40m; double-arm for tanks >40m.
Efficient Sludge Extraction: Horizontal perforated pipes minimize disturbance to density currents and improve sludge concentration.
Variable Orifice Spacing: Tapered suction pipes with progressively spaced orifices ensure uniform sludge extraction and higher solids concentration.
Flexible Skimming Options: Choice of plate skimming (standard) or pipe skimming.
Automated Operation: Local and remote control capabilities for seamless integration into plant management systems.
Ideal For:
Municipal wastewater treatment plants, industrial water recycling facilities, and large-scale sedimentation tank applications requiring reliable and efficient sludge removal.
Keywords:
Perimeter drive sludge scraper, full-bridge suction machine, wastewater treatment scraper, central drive sludge system, China wastewater equipment.
Main Parameters and Installation Size Chart
Outline and Installation Chart
End beam drive device 2. Sink cleaning brush 3. Slag hopper 4. Mud collection tank 5. Stabilizing flow cylinder 6. Central mud tank 7. Central support 8. Power collector 9. Suction and mud collector 10. Mud suction Pipe 11. Working bridge 12. Slag scraping rake 13. Scum baffle 14. Water outlet weir plate 15. Slag skimmer plate
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
