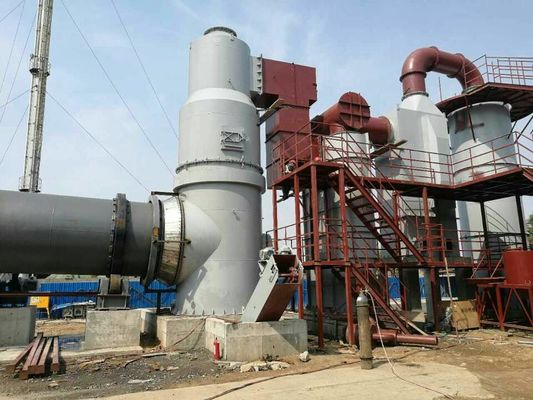

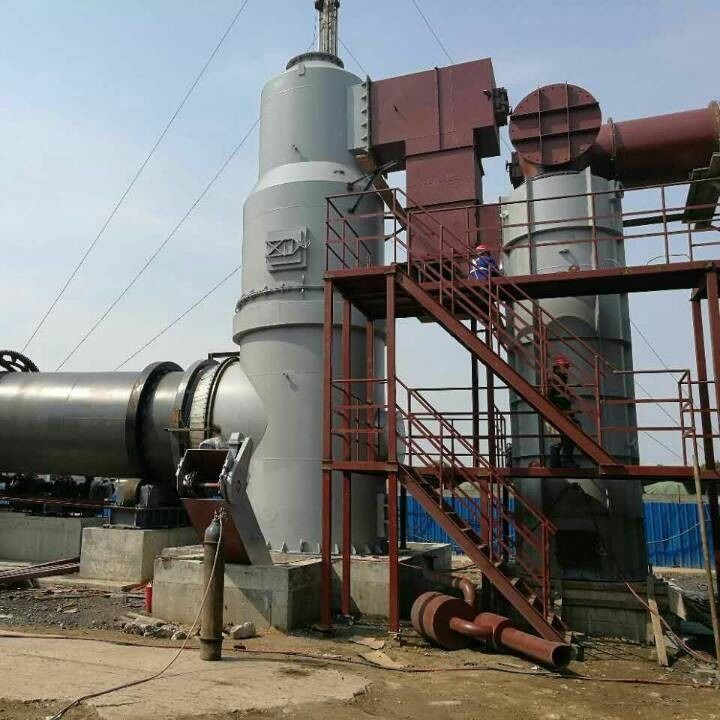

Advanced Waste Incinerator for Harmless Treatment of Medical, Domestic & Animal Waste
We specialize in manufacturing comprehensive waste management solutions, including:
Mechanical bar screens
Air flotation devices
Chemical dosing systems
Mud scrapers and cooling towers
Decanters and degreasing units
Hydraulic screens and sand separators
Filters, conveyors, and thickeners
Biological filters and water softeners
Buried sewage treatment equipment
Our incinerators provide complete harmless treatment for:
Medical waste (infectious materials, sharps, biomedical waste)
Domestic refuse (municipal solid waste)
Animal carcasses (livestock and poultry disposal)
Primary Combustion: Waste is ignited at 800–950°C in the primary chamber, reducing it to ash and gases.
Secondary Combustion: Gases move to the secondary chamber, where they are reburned at 1,100–1,200°C to eliminate toxins.
Gas Treatment: Emissions pass through a cyclone dust collector to remove particulates.
Final Discharge: Treated gases are safely released via the chimney, complying with environmental standards.
Waste pre-treatment (shredding, drying)
High-efficiency incineration combustion
Smoke bio-filtration and dust removal
Fully automated control and monitoring
| Model | Dimensions (L×W×H mm) | Capacity (kg/batch) | Chamber Volume (m³) | Power (kW/h) | Fuel Consumption (L/h) | Weight (t) |
|---|---|---|---|---|---|---|
| ZTFS-25 | 1000×900×1700 | 25 | 2.5 | 2 | 3 | 1.15 |
| ZTFS-20-40 | 1200×1300×1800 | 20–40 | 3.0 | 2–4 | 3–8 | 2.2–5.5 |
| ZTFS-20-60 | 1700×1500×2100 | 20–60 | 5.0 | 2–5 | 3–10 | 4.5–7.8 |
| ZTFS-50-120 | 2200×2000×2500 | 50–120 | 10.0 | 3–12 | 4–15 | 5.0–11.5 |
| ZTFS-100-300 | 3000×3500×2900 | 100–300 | 13.0 | 10–30 | 10–40 | 15–25 |
| ZTFS-400-500 | 3000×3700×3200 | 400–500 | 17.0 | 40–50 | 50–60 | 30–45 |
Primary & Secondary Combustion Chambers – Ensure complete waste breakdown and gas reburning.
Cyclone Dust Collector – Captures particulate matter from flue gases.
Flue Gas Piping System – Channels emissions through treatment stages.
High-Pressure Blower & Induced Draft Fan – Maintain optimal airflow and combustion efficiency.
Automated Control Cabinet – Integrates temperature monitoring, diagnostics, and operational controls.
Temperature Monitoring & Detection Devices – Ensure precise combustion control and safety.
High-Temperature Efficiency – Dual-chamber design ensures complete waste destruction and pathogen elimination.
Multi-Fuel Compatibility – Supports coal, oil, gas, and other fuels for flexible operation.
Environmentally Compliant – Advanced filtration minimizes particulate and gaseous emissions.
Automated Operation – Reduced manual intervention with PLC-based controls.
Durable Construction – Robust materials withstand high thermal stress and continuous operation.
Customizable capacity based on waste volume and type.
Compact design with optional mobile configurations.
Compliance with international emission standards (e.g., EPA, EU directives).
Turnkey installation and technical support.
Combustion process and brief description:
The waste is manually put into the primary combustion chamber of the furnace body, and the automatic temperature control starts the primary combustion. According to the principle of combustion three T (temperature, time, vortex), it is fully oxidized, pyrolyzed and burned in the furnace body combustion chamber. The flue gas produced by incineration enters the second combustion chamber, and the unburned harmful substances in the flue gas are further destroyed in the second combustion chamber. In order to completely decompose the unburned embers and meet the emission requirements, the second combustion chamber is equipped with a burner to assist combustion, and is equipped with a unique secondary air supply device to ensure that the flue gas is in full contact with oxygen at high temperatures, and at the same time to ensure that the flue gas is in the second combustion chamber. The residence time of the combustion chamber is adjusted according to the oxygen content of the flue gas at the outlet of the second combustion chamber. The temperature in the second combustion chamber is controlled and the larger particles are removed by the dust collector, so that the incineration efficiency and destruction removal rate can reach more than 99%, so that it can achieve the effect of no odor, no odor and smoke, and reach the national emission standard. It enters the chimney and is discharged into the atmosphere, and the ashes produced after combustion are manually taken out, screened, transferred and buried.
FAQ:
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System, and other customized machines.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
